Lindsay Patented Uniform Parallel
Point™ is a V shaped graver point with relieved heels that works with
any width V graver point. U.S. Patent # 7,032,586
The Fool-Proof Graver Sharpener™is simple, quick, inexpensive and most of all
repeatable dead-on accurate in reproducing the patented Uniform Parallel
Point™
Scroll down below for the Lindsay sharpener options various templates.
Colored graver beads are good for several uses.
1: Use
them to help identify your gravers.
2: Set them at the proper distance on the graver for re-sharpening.We
can have many gravers at different lengths and by using a bead
on each the length gauge is not needed during re-sharpening.
They are free when ordered with something else on the site.
However you need to add them to your cart, to let us know you
would like a bag of them. $0.00 Free Beads
Sharpening Fixture
with universal ™ 116 degree template, without
stones $89
Note: The
116 degree universal ™ template grinds the same
pre-sharpened poing
that is
supplied with each sale of an AirGraver® handpiece. Additional
templates are listed below
Sharpening Fixture
alone without templates (this is the metal portion that holds the
templates and graver)
$66
Diamond bench stones for use with Graver
Sharpener
Bench stone 260 diamond grit (6" x 2" x 1/2")
$49 Bench stone 600 diamond grit (6" x 2" x 1/2")
$49 Bench stone 1200 diamond grit (6" x 2" x 1/2")
$49 Bench stone 2000 diamond grit (6" x 2" x 1/2")
$49 Ceramic Bench Stone (6"x1"x1/2")
$69
Graver Sharpening Sets
Sharpener set with one
template Includes: Sharpener with fixture and all four diamond
bench stones (260, 600, 1200, 2000), and the universal ™™
116 degree V template.
$265
____________________
Sharpener set with four basic templates Includes: Sharpener with fixture and all four diamond bench
stones (260, 600, 1200, 2000), plus 4 templates: universal ™ 116
degree, Detailing, 105, and Flat & Knife Combo.
$334
____________________ Bead Stone Setting Sharpening Set - Suggested by Portland Jewelry
Academy
Includes:
1) Metal Sharpening Fixture: $66
2) Four Diamond Bench Stones 260, 600, 1200, and 2000: $156
3) Mirror-Grave™ Polishing Sheet: $10
4) Flat/ knife Combo template: $23
5) Onglette template: $24
6) Round point template: $23
7) Narrower template: $8.00
8) Two High speed steel graver blanks: $12
9) One Carbalt™ graver blank: $15
10) Right/Left hand Onglette template $24
11) Two M42 graver blanks $20
$417.50
Note: if you are wanting this set without one or more of the
items for to exchange one of another, you can order this set
as it is and during checkout write a note in the place
provided what you'd like to add or subtract. Go
through with the order that way and then we can refund or
send a PayPal request for any difference in price.
About Lindsay Graver Sharpener Templates
The various templates are used with the metal
sharpening fixture show above ($66). Just one metal fixture is
needed and is used with any of the templates.
Templates for Uniform Parallel point™ will
provide a point with a nominal: 45
degree face, 16.5 degree high heel. The face and heel can be changed
in the fixture by simply reducing the graver length protruding from the
fixture. With all the templates
grind more on the points taper facets to make a smaller faced point as
desired. Templates: Left to Right. Click photo to enlarge Top row:
universal ™, Roland Baptist gold inlay, Dario Cortini bulino, and Caligraphy.
Bottom row: Round point, 70 degree bulino, Phil Coggan Bulino,
Detailing, and Flat/knife.
Bulino Template
Set Includes the most popular of the V templates used to make bulino
points in a set. Includes: 80V, 90V, 105V, 120V and the
Phil Coggan Bulino template. Bulino Set
$99
Stipple Templates:
Used to make a 3/32" square graver blank into a stipple point
R. Baptiste square stipple
$16 Small Hex stipple
$16 Large Hex stipple
$16 Round stipple
$16 Stipple set (includes all four)
$56
The templates to the left are for grinding
various width V Lindsay patented Uniform Parallel points.
These templates are also used to make various width bulino dot
gravers by not utilizing the two primary heel facets on the
template.
Inverted Bulino Graver Points
These are somewhat similar to the above Phil Coggan and Dario
Cortini points. (click photo to enlarge)
80 degree V inverted point template$22
90 degree V inverted point template$22
100 degree V inverted point template
$22
105 degree V inverted point template $22
110 degree V inverted point template $22
Set of all five inverted point templates $110
70 V Bulino™
Uniform Parallel Point™$27
(Used with a heel for lines or without
a heel for bulino dots) Face angle is 55 degrees for a
stronger tip. Uniform Parallel Point™
information
Flat & Knife Combo™
For making
flats or a small undercut gold inlay graver (used in the method of
undercutting by removing metal) $23
Parallel
Flat™
Parallel Flat Template.
This is similar to the above but it makes parallel sides similar
to a more traditional flat graver.
$23
Paolo "MRTHE™" Curcio, 50 Degree V &
Rounded Corner Flat - Combo Set
Click to enlarge
The "MRTHE" three piece
template set can numerious points:
- 50 V degree point without heels for detailing and very fine
shading - 50 V degree point with heels for medium and deep lines and for
prepare inlay work - Flat graver point - Flat rounded corner point ,for easy background removal,the
rounded corner reduce marks,especially usefull for hobo nickel
carving - Flat big radius point for sculpting works - Stippling square point - Stippling round point - Sculpting Punch point in various geometries (round ,square and
rectangle) - Small round point
Paolo "MRTHE" Curcio, 50 Degree V & Rounded
Corner Flat - Combo - Three piece Set $39
This template is the same as the normal 116°, but the relief grind under
the heel is negative. The purpose of this negative grind is to achieve
more heel clearance. This additional relief was described in the
Lindsay Uniform Parallel Point™ patent, but this is the first template
made available to actually achieve this point.
This template
requires that the height of the grinding lap or bench stone be
3/4" instead of the usual 1/2" seen in all previous templates. I
recommend just shimming your 1/2" stones up the last 1/4".
A power hone for initially shaping this is helpful. However it can be done
with the diamond bench stones. Steve tested how long it would take him to
sharpen one from a Carbalt™ blank on the diamond bench stones. It was 15
minutes. Of course starting with a the 3 degree tapered Carbalt™ blank
would considerably shorten the time.
This double thickness template set is similar to the "Narrower" template
above, however the square in this set is smaller. It is used to narrower
the graver too, but so that it closer to parallel with the shank, so that
the grind is more long and slender. After the square template is used, the
round is used to round the top edge of the slender shank. After this the
graver is sharpened normally with the other available templates to make
micro versions of the graver points.
The wrench are setscrew are provided to replace the thumbscrew in the
sharpening fixture. This is needed to be done before using these templates
because they grind so low that the thumbscrew will be in the way if it is
not removed. Simple remove the thumbscrew and install the setscrew with
the supplied wrench. Of course, when you finish with shaping a graver
shank with these templates you may reinstall the thumbscrew.
"Narrower ™" Template
Click photo to enlarge The photo below illustrates three thinning techniques.
Thinning the tip of the blank can be done using this
template which fits on the Lindsay sharpening fixture.
Illustrating how the pin can be moved if desired to rotate
the grinds 45 degrees to the shank. "Narrower" Template
$8.00
1/16" thick 6" Diameter
Diamond Sharpening Laps Will replace laps on power hones originally supplied with 5"
diameter laps.
1200 grit diamond lap
$25 600 grit diamond lap
$28 260 grit diamond lap
$35 100 grit diamond lap
$48
Mirror-Grave™ Polishing Sheet
Instructions: Finish hone the graver point on a 2000 or
3000 diamond Bench stone. Next set the Mirror-Grave™ Polishing Sheet on
the diamond bench stone and rub face & heels lightly a few strokes for a
mirror polish. Will polish HSS, M42, M48 or Carbalt™ gravers.
More info on the engraving forum
at this thread link.
Mirror-Grave™ Polishing Sheet only
$10
Cast Iron Lap
Note: See the above Mirror-Grave sheet. The film is easier
to use, less messy and less expensive than the cast iron lap
method. For polishing also consider the ceramic bench
stone sold below.
Cast Iron Lap
$69

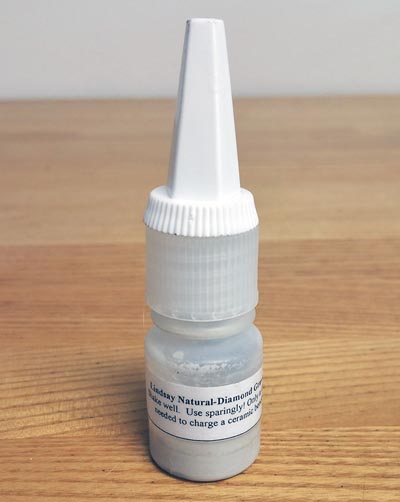

Lindsay Natural Diamond Graver
Polish Made with natural
diamond that is sharper and cuts faster
than common synthetic diamond.
No mess drop dispenser
For use on a Lindsay ceramic
stone bench stone using a FoolProof Graver sharpening fixture.
Use sparingly! Only a drop or two on your ceramic
stone is needed in order to charge the stone with diamond.
Once you have a stone charged with diamond try and not wipe or
clean it off.
Even though the liquid may dry on the stone the diamond will
still be there ready to polish.
Nature Diamond
Graver Polish$46.50
Ceramic Stone $67

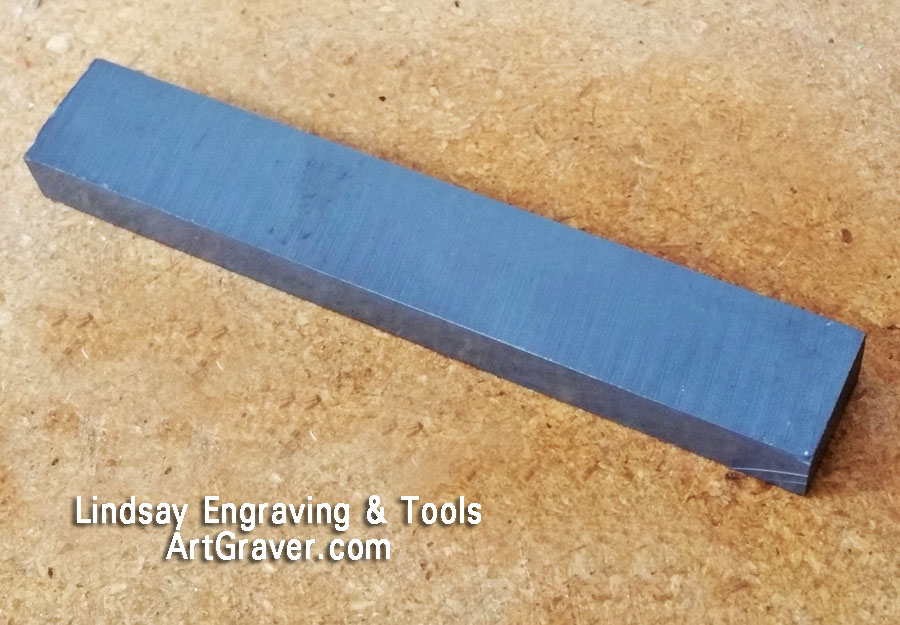

Ceramic Bench Stone (6"x1"x1/2"). For polishing graver facets to a mirror
with either diamond paste or with Natural Diamond polish sold
above. Note: the diamond paste is synthetic diamond.
Natural diamond polish described above is natural diamond that
cuts and polishes faster than synthetic.
Ceramic Stone $67
Diamond paste$42
This ceramic stone is 1/2" thick
and the height needed for our FoolProof template sharpener.
Used to polish carbalt and carbide gravers with
our diamond
paste.
Can be used without diamond for polishing M42 and HSS
gravers.
We have
discontinued the diamond spray as so much of it was wasted and
not getting applied to the surface of the ceramic stone.

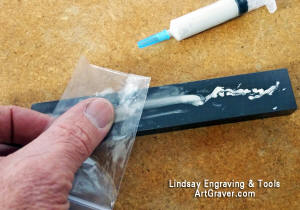

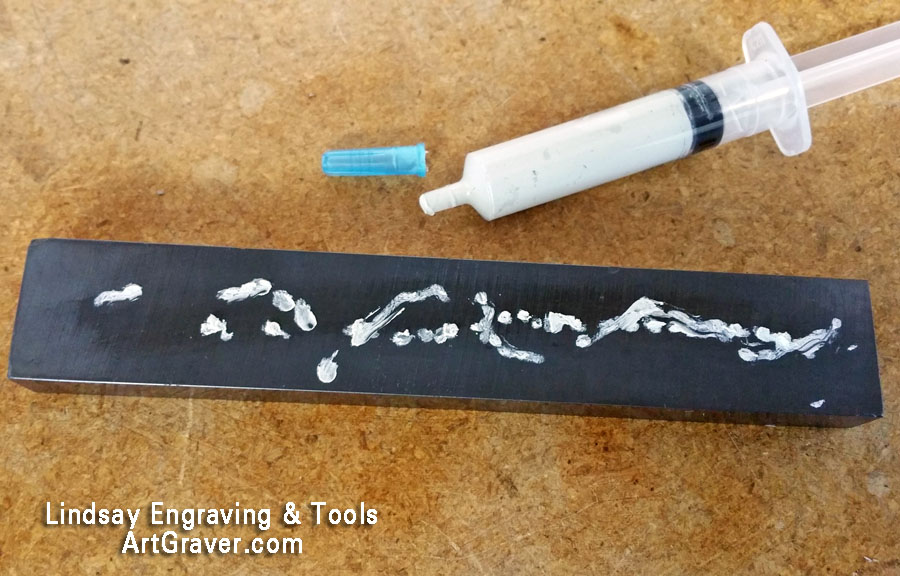

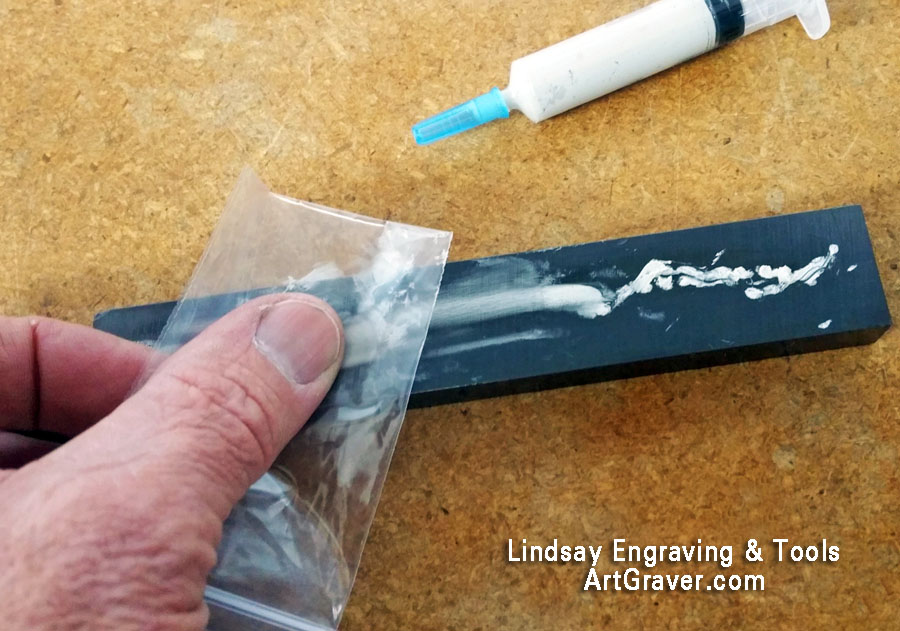

To use the diamond past dab some on to the ceramic stone and
smear it over the surface. In these photos more than
necessary was applied. Half that much is more than enough.
During use of sharpening the diamond becomes imbedded and caught
in the surface of the ceramic.
Last photo
to the left:

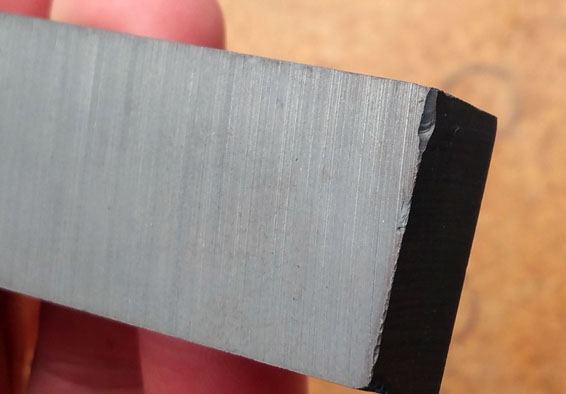

The corners of the ceramic are fragile and the one you receive
you will see chips. It is the nature of them but this does
not effect the intended use.
Lap Mandrel Adapter
for converting a drill press to a power hone. Can also be used to mount
and spin the Anti-MagLap™ described below.
$19.50
Slip these over
your graver to help identify your various graver point. (Graver in photo not inclded)
These are free when placing an order with something else on
the website. During checkout just write a note that you would like a
bag. Otherwise, they can be ordered by themselves below.
Random colored graver
bands. Approx 20 to 25 in a bag
$5.00
Dental Bur sharpener
by Tim Wells This small fixture is designed to sharpen used 1/16th inch carbide dental
burrs or
carbide rod to a four sided taper that can be used in the air rotarty
tools such as the NSK
Presto. The fixture has a through hole so a longer piece of carbide
can be sharpened if need be. If you would like a tapered point that is
steeper or less step, all that need be done is to set the fixture on
something of suitable thickness so as to give the taper desired. This
can be used with diamond bench stones like used with the Lindsay
template sharpening system,
Tom
White's power hone or other power hones.
Anti-MagLap Spin this lap to demagnetize gravers or other small
metal objects. To use, hold the object to be demagnetized close
to the center of the spinning lap and pull the object straight
away from the center.
Comes with a 1/2" hole in the center so that it can be mounted
on a power hone. Or it can be mounted on a "mandrel lap adapter"
(sold above) so that a drill press or electric hand drill can be
used to spin the lap. Big thank you to Paolo for his
contribution and help with this lap!
Forum thread about the Anti-MagLap
Anti-MagLap
$46
Onglette and other sharp V
templates (all with 55 degree faces for point
strength)
These templates have 55
degree faces for additional point strength Click image to enlarge
Onglette template
$24
50-60 template
$24
50-60 double-angled™ face template
(large template only, use
small template from the normal faced 50-60 template set) $20
60-70 template
$24
SET Onglette and Sharp V Templates Set™ (sold as four piece a set)
$87
Special Right hand
Onglette template
Similarly pictured to the 50-60 double angled face template
above but in an Onlegleet shape
Right hand Onglette template
$24
Point pictured below is of an Onglette point shaped with the Onglette
template (sold above) Click image to enlarge
Otto
Carter
BULLDOZER™ STRENGTH point graver fixture
If you are
into some harder metals and breaking points, this fixture can
help to modify the cutting edge of Uniform Parallel points™ with
a very tiny squared off facet on the cutting edges that provide
a bulldozer effect. Use on the edge of a table as shown
below to help align your stone. This fixture helps by
positioning the cutting edge parallel to the edge of the fixture
where the stone is used. Note the side of the pointer the graver
is placed on. The point should point away from the
pointer. Click photos to enlarge to help see detail.
Arkansas stone sold separately and together as a set.
The below photo shows the template on the metal sharpening
fixture. Note: The metal sharpening fixture (sold at the
top of this page) that the
template fits on is not included with the template. The fixture needs to be purchased
separately if you do not have one.
Multi-Angle Omnigrind™ Template
$29
Modified sharpening fixture to hold extensions. This is
used if needed to sharpen very short gravers 3/4 to 1" long.
Modified
sharpening fixture for sharpening 3/4" to 1" long gravers $96
Note: At lease one
straight extension is required for use. Straight Extension
$11
Knurled Nut
Used to replace the hex nut that comes on the metal
sharpening fixture.
Knurled Nut $6
Templates for Engraver Carl Bleile's Graver Points
Tool point descriptions as pictured left to right.
(1) banknote engraving for darker lines (red templates),
(2) scraping tool for removing tool marks, final contouring, also removes excess gold and shapes raised inlays after inlaying (green
template) (3) background removal tool with special side grinds to get around main area without nicking (blue template). (4) medium to deep outline, removing background in tight areas, preparing for background removal and gold inlay (red templates). More information and discussion about Carl Bleile's points and templates on www.EngravingForum.com Thread 1,
Thread 2,
Thread 3,
Thread 4
,
Thread 5,
Thread 6,
Thread 7,
Thread 8,
Thread 9Thread
10
Dual sided 6" diamond disk 180 roughing and 2200 polishing allows a point to be ground and polished quickly.
Disk is placed to the back and offset allowing more work table in front for the templates or fixtures
Fused input
Heavy gauge steel construction
Available in two models through the T.W. Designs website (order there) Click here to go to T. W Designs website The Diamond Power Hone is available in two models.. Read more about the
features of these hones and order direct on the T.W. Design Website (click here)
See discussion thread on
the engraving
forum about the hone
click here thread
T-W Designs - Diamond Power Hone
Review by Steve Lindsay I have been using this T-W Diamond Power Hone for some time. The speed in which I can rough and finish a
carbalt blank is under two minutes with the machine. I use the machine to rough grind using the Lindsay template
fixture. Once roughed I then rub the graver face on a Lindsay 2000 diamond bench diamond stone with 10 to 15 strokes and then place on the heels with 3
to 7
strokes per side depending on heel size needed. I use the machine at maximum speed for this roughing. The motor has good torque and I can lean on the graver somewhat that also
helps. If grinding a High Speed Steel graver I take it more easy and I don't lean on it as much so that the graver does not get hot and lose its
temper. Be careful with HSS graver and don't get them so hot that they turn colors. I monitor the heat of HSS gravers with my fingers while
grinding for this reason.
